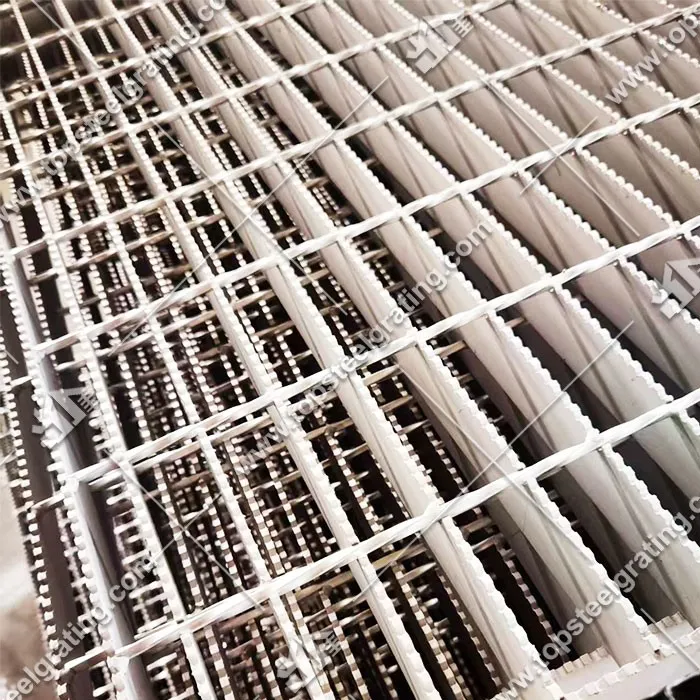

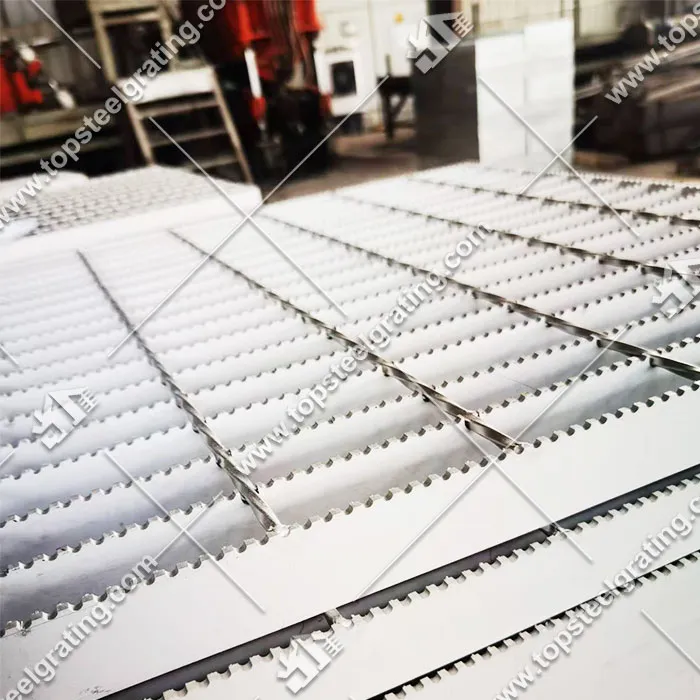

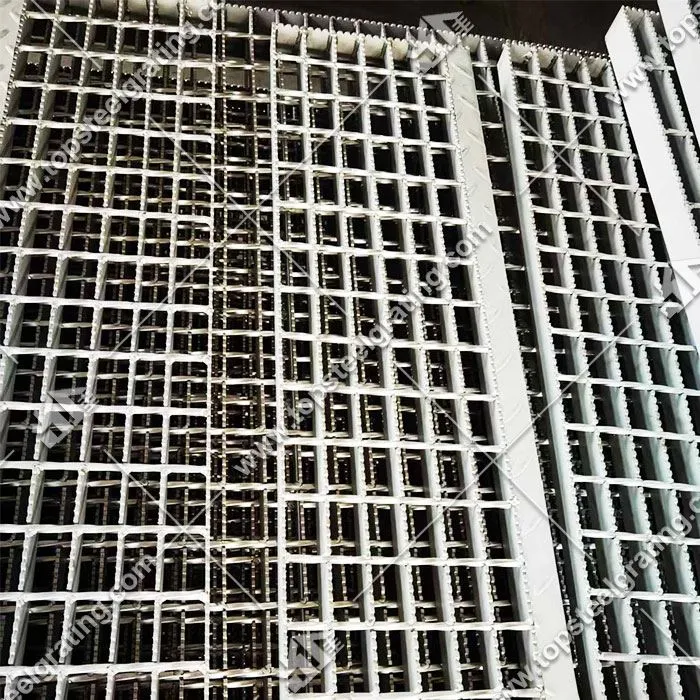

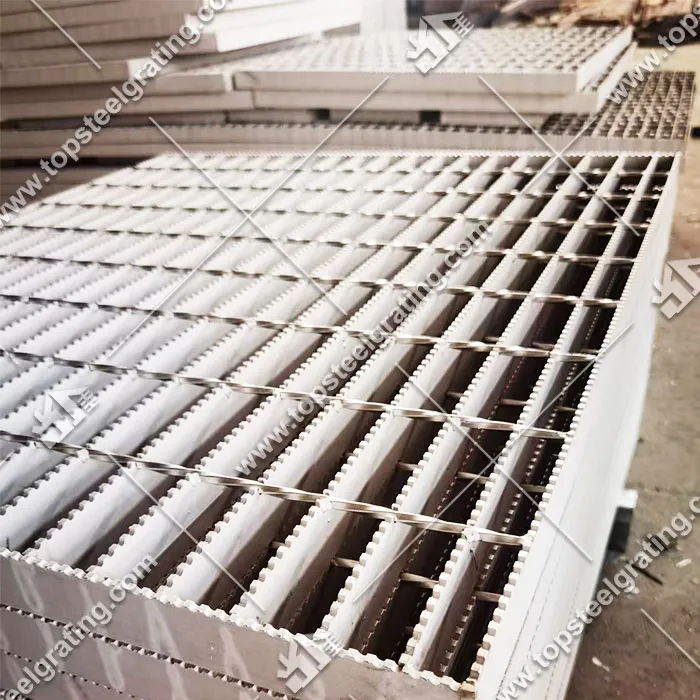

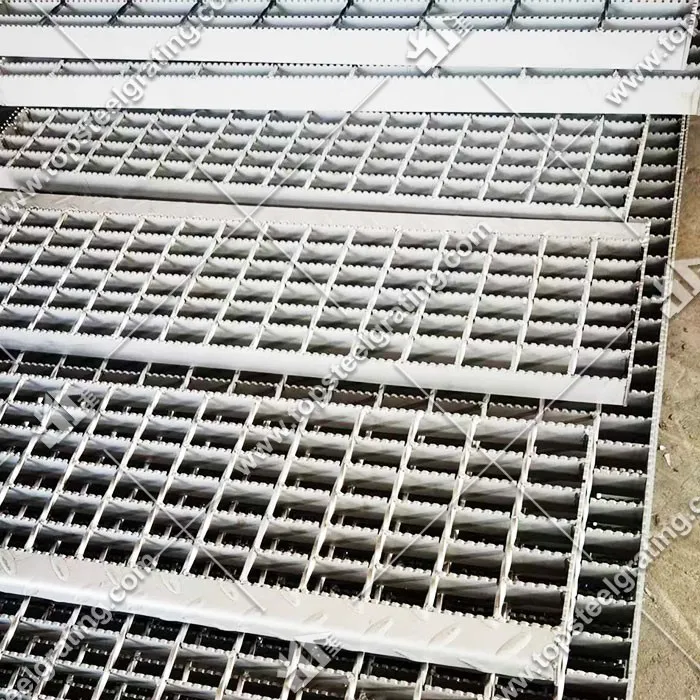

SHANGJIA is a reliable steel bar grating supplier in China. The serrated stainless steel grating we supply is a high-performance industrial platform material, which is welded and formed by stainless steel flat steel and crossbars. The surface is designed with a unique serrated anti-slip pattern, which has high strength, corrosion resistance, and anti-slip properties. The serrated bar grating is widely used in harsh environments such as humidity, oil pollution, and high loads. It is an ideal choice for petrochemicals, food processing, sewage treatment, shipbuilding, and other fields.
Products Specification
| Product Name | Serrated stainless steel grating |
| Materials | 304/316 stainless steel (optional 430/2205 duplex steel) |
| Tooth Height | 3-5mm (customizable) |
| Common Size | 1000×6000mm (non-standard customization is supported) |
| Cross Bars | Dia. 5mm, 6mm, 8mm (round bar)/ 5*5mm, 6*6mm, 8*8mm (twist bar) |
| Cross Bar Spacing | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
| Bearing Bars | 20*5, 25*3, 25*4, 25*5, 30*3, 30*4, 30*5, 32*3, 32*5, 40*5, 50*4… 75*8mm, etc. |
| Bearing Bar Spacing | 20, 25, 30, 32.5, 34.3, 40, 50, 60, 62, 65mm |
| Surface Treatment | Hot dipped galvanized, painting, pickling passivation, electrolytic polishing, wire drawing, etc. |
Core Advantages of Serrated Stainless Steel Grating
Anti-slip Safety
The serrated surface provides excellent anti-slip performance and reduces operational risks.
Super Strong Load-bearing Capacity
The load capacity is more than 5 tons/㎡, meeting the traffic needs of heavy equipment.
Corrosion Resistance And Long Life
304/316 stainless steel material, resistant to acid, alkali, and salt spray corrosion, with a service life of over 20 years.
Lightweight Design
The opening rate is 30%-50%, the dead weight is light, and the structural load is reduced.
Application scenarios
Industrial platform
Chemical plant, power station maintenance channel
Food workshop
Anti-slip walkway in wet area
Ship deck
High salt spray environment at sea
Wastewater treatment
Aeration tank, filter tank grille
Shangjia Service Highlights
Full-process quality control
ISO9001 certified, 12 inspection processes from raw materials to finished products
Customized production
Supports special-shaped cutting, edge welding, and step integration
Fast delivery
Regular specifications are shipped within 3 days, and urgent orders are processed expedited
Technical support
Free load calculation and installation guidance
Wuxi Shangjia Steel Grating Co., Ltd. has focused on the steel grating field for 13 years. Our serrated stainless steel grating adopts German laser cutting technology, and the welding strength exceeds the national standard by 20%. We provide a 5-year warranty commitment to help you reduce maintenance costs and improve the safety level of your project.
