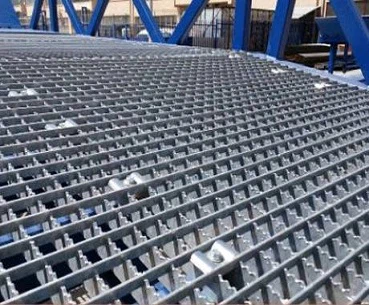

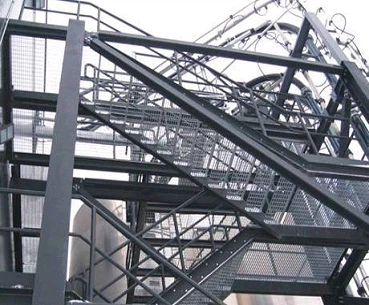

Serrated press-locked steel grating is made of high-quality mild steel or stainless steel. The product not only has high bearing capacity, anti-corrosion, anti-rust, anti-skid, high safety, but also is not easy to accumulate rain, snow, and dust. Due to its simplicity and beauty, easy installation and disassembly, serrated press-locked steel gratings are widely used as floors, platforms, entrance ramps, sidewalks, straight ladders, spiral ladders, etc. in industrial, commercial and civil buildings.
|
|
* Material: low carbon steel, stainless steel and aluminum.
* Surface treatment: galvanized, painted and powder coated.
* Surface type: standard plain surface, serrated surface.
* Cross bar spacing: 2" or 4".
* Bearing bar spacing: standard is 15/16" or 1-3/16".
Technical Parameters
Specifications of P-19 | |||
Item | Bar Size (D × W) | Bearing Bar Spacing | Cross Bar Spacing |
PGW19-01 | 3/4" × 1/8" | 1-3/16" | 2", 4" |
PGW19-02 | 1" × 1/8" | 1-3/16" | 2", 4" |
PGW19-03 | 1-1/4" × 1/8" | 1-3/16" | 2", 4" |
PGW19-04 | 1-1/2" × 1/8" | 1-3/16" | 2", 4" |
PGW19-05 | 3/4" × 3/16" | 1-3/16" | 2", 4" |
PGW19-06 | 1" × 3/16" | 1-3/16" | 2", 4" |
PGW19-07 | 1-1/4" × 3/16" | 1-3/16" | 2", 4" |
PGW19-08 | 1-1/2" × 3/16" | 1-3/16" | 2", 4" |
PGW19-09 | 1-3/4" × 3/16" | 1-3/16" | 2", 4" |
PGW19-10 | 2" × 3/16" | 1-3/16" | 2", 4" |
PGW19-11 | 2-1/4" × 3/16" | 1-3/16" | 2", 4" |
PGW19-12 | 2-1/2" × 3/16" | 1-3/16" | 2", 4" |
Specifications of P-15 | |||
Item | Bar Size (D × W) | Bearing Bar Spacing | Cross Bar Spacing |
PGW15-01 | 3/4" × 1/8" | 15/16" | 2", 4" |
PGW15-02 | 1" × 1/8" | 15/16" | 2", 4" |
PGW15-03 | 1-1/4" × 1/8" | 15/16" | 2", 4" |
PGW15-04 | 1-1/2" × 1/8" | 15/16" | 2", 4" |
PGW15-05 | 3/4" × 3/16" | 15/16" | 2", 4" |
PGW15-06 | 1" × 3/16" | 15/16" | 2", 4" |
PGW15-07 | 1-1/4" × 3/16" | 15/16" | 2", 4" |
PGW15-08 | 1-1/2" × 3/16" | 15/16" | 2", 4" |
PGW15-09 | 1-3/4" × 3/16" | 15/16" | 2", 4" |
PGW15-10 | 2" × 3/16" | 15/16" | 2", 4" |
PGW15-11 | 2-1/4" × 3/16" | 15/16" | 2", 4" |
PGW15-12 | 2-1/2" × 3/16" | 15/16" | 2", 4" |
