Press-locked steel grating, also called press locked steel bar grating, press-lock steel grating or pressure locked steel grating, is made of mild steel or stainless steel. With the performance of high bearing capacity, non-slip, anti-corrosion and easy to install and remove, it is widely used in industrial plants or parks, commercial buildings, municipal engineering and other projects, often used as stair treads, platforms, sidewalks, anti-theft screens, tree covers, ditch covers, drainage covers, etc.
|
|
Press-locked steel bar grating used as security building screen | Press-locked steel grating can be used as the decoration of outer wall. |
|
|

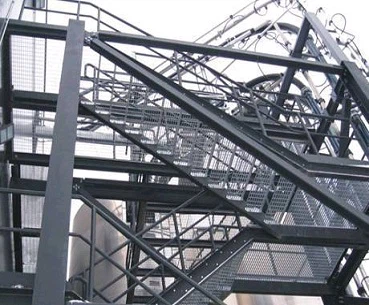

Press-locked steel grating can be used as truck floor. | Press-locked steel bar grating stairs. |
Specification
* Material: Low carbon steel, or stainless steel
* Surface Treatment: Galvanized, painted, and powder coated.
* Surface Type: Standard plain surface, serrated surface.
* Cross Bar Spacing: 2" or 4".
* Bearing Bar Spacing: Standard is 15/16" or 1-3/16".
Classification
* Full-locked steel bar grating: The bearing bars and cross bars are notched and have the same height.
* Heavy-duty pressed bar grating: The bearing bars are higher than the cross bars and they are all notched.
* Pressure locked steel grating: Only the bearing bars are notched, the cross bars are common plain steel. And they have different height.
* Louver bar grating: The notches of bearing bars are at a angle of 30° or 45°. The cross bars insert into the bearing bars before being pressed.
Main Features
* Light weight, high bearing capability, and high strength.
* Non-silp, anti-corrosion.
* Not easy to deform.
* Beautiful appearance.
* Easy to install and remove.
* Extended the lifespan.
Technical Parameters
Specifications | |||
Item | Bar Size (D × W) | Bearing Bar Spacing | Cross Bar Spacing |
PGW19-01 | 3/4" × 1/8" | 1-3/16" | 2", 4" |
PGW19-02 | 1" × 1/8" | 1-3/16" | 2", 4" |
PGW19-03 | 1-1/4" × 1/8" | 1-3/16" | 2", 4" |
PGW19-04 | 1-1/2" × 1/8" | 1-3/16" | 2", 4" |
PGW19-05 | 3/4" × 3/16" | 1-3/16" | 2", 4" |
PGW19-06 | 1" × 3/16" | 1-3/16" | 2", 4" |
PGW19-07 | 1-1/4" × 3/16" | 1-3/16" | 2", 4" |
PGW19-08 | 1-1/2" × 3/16" | 1-3/16" | 2", 4" |
PGW19-09 | 1-3/4" × 3/16" | 1-3/16" | 2", 4" |
PGW19-10 | 2" × 3/16" | 1-3/16" | 2", 4" |
PGW19-11 | 2-1/4" × 3/16" | 1-3/16" | 2", 4" |
PGW19-12 | 2-1/2" × 3/16" | 1-3/16" | 2", 4" |
Specifications | |||
Item | Bar Size (D × W) | Bearing Bar Spacing | Cross Bar Spacing |
PGW15-01 | 3/4" × 1/8" | 15/16" | 2", 4" |
PGW15-02 | 1" × 1/8" | 15/16" | 2", 4" |
PGW15-03 | 1-1/4" × 1/8" | 15/16" | 2", 4" |
PGW15-04 | 1-1/2" × 1/8" | 15/16" | 2", 4" |
PGW15-05 | 3/4" × 3/16" | 15/16" | 2", 4" |
PGW15-06 | 1" × 3/16" | 15/16" | 2", 4" |
PGW15-07 | 1-1/4" × 3/16" | 15/16" | 2", 4" |
PGW15-08 | 1-1/2" × 3/16" | 15/16" | 2", 4" |
PGW15-09 | 1-3/4" × 3/16" | 15/16" | 2", 4" |
PGW15-10 | 2" × 3/16" | 15/16" | 2", 4" |
PGW15-11 | 2-1/4" × 3/16" | 15/16" | 2", 4" |
PGW15-12 | 2-1/2" × 3/16" | 15/16" | 2", 4" |
Applications

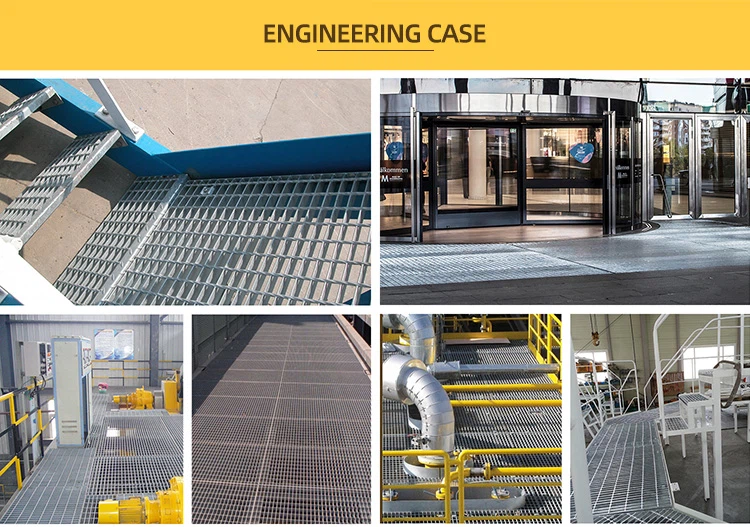

Press locked steel grating is widely used for the floor, ceiling, platform, fence, shelf, decoration of outer wall, sun visor, bridge and inner and spiral staircases in such places:
* Large-scale shopping malls.
* Construction industry.
* Factories.
* Subway stations.
* Offshore drilling platforms.
* Other industrial and civil construction.
